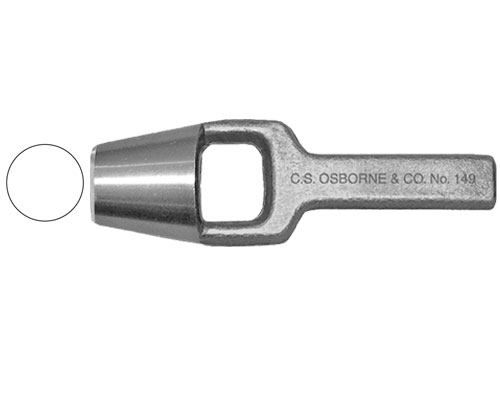

No. 149 - Arch Punch - Inches

Click on image to zoom

Description:

Osborne Arch Punches are forged in one piece from the finest special carbon steel in sizes from 1/8" to 2-1/4" diameter. Larger sizes are made with our properly engineered two piece welded construction. A unique feature of the Osborne Arch Punch is the inside taper which permits the punchings to clear easily through the barrel. Punches have fully polished barrel. The cutting edge is fully hardened all the way through and properly finished to provide long use trouble free punching. There is no other hollow punch that can compare.

No. 149 - Arch Punch - Inches
Osborne No.	Hole diameter (inches)	Weight each (lbs & oz)	UPC No.
149 3-3/16	3-3/16	2 - 13	01106
149 3-3/4	3-3/4	4 - 8	01124
149 3-11/16	3-11/16	3 - 15	01122
149 3-5/8	149 3-5/8	3 - 13	01120
149 3-9/16	3-9/16	2 - 5	01118
149 3-1/2	3-1/2	4 - 12	01116
149 3-7/16	3-7/16	4 - 11	01114
149 3-3/8	3-3/8	4 - 11	01112
149 3-5/16	3-5/16	5 - 4	01110
149 3-1/4	3-1/4	2 - 11	01108
149 3-13/16	3-13/16	3 - 12	01126
149 3-1/8	3-1/8	2 - 9	01104
149 3-1/16	3-1/16	2 - 5	01102
149 3	3	2 - 12	01100
149 2-15/16	2-15/16	2 - 11	01098
149 2-7/8	2-7/8	1 - 15	01096
149 2-13/16	2-13/16	2 - 8	01094
149 2-3/4	2-3/4	3 - 1	01092
149 2-11/16	2-11/16	2 - 15	01090
149 2-5/8	2-5/8	2 - 15	01088
149 4-7/16	4-7/16	5 - 1	01146
149 5	5	5 - 8	01162
149 4-15/16	4-15/16	5 - 7	01161
149 4-7/8	4-7/8	5 - 6	01160
149 4-13/16	4-13/16	5 - 6	01158
149 4-3/4	4-3/4	5 - 5	01156
149 4-11/16	4-11/16	5 - 4	01154
149 4-5/8	4-5/8	5 - 4	01152
149 4-9/16	4-9/16	5 - 2	01150
149 4-1/2	4-1/2	5 - 1	01148
149 2-9/16	2-9/16	2 - 14	01086
149 4-3/8	4-3/8	5 - 1	01144
149 4-5/16	4-5/16	5 - 0	01142
149 4-1/4	4-1/4	5 - 0	01140
149 4-3/16	4-3/16	4 - 6	01138
149 4-1/8	4-1/8	3 - 14	01136
149 4-1/16	4 4-1/16	4 - 5	01134
149 4	4	4 - 12	01132
149 3-15/16	3-15/16	3 - 12	01130
149 3-7/8	3-7/8	4 - 2	01128
149 3/4	3/4	0 - 9	01028
149 1-5/16	1-5/16	1 - 5	01046
149 1-1/4	1-1/4	1 - 3	01044
149 1-3/16	1-3/16	0 - 15	01042
149 1-1/8	1-1/8	0 - 15	01040
149 1-1/16	1-1/16	0 - 12	01038
149 1	1	0 - 13	01036
149 15/16	15/16	0 - 12	01034
149 7/8	7/8	0 - 12	01032
149 13/16	13/16	0 - 9	01030
149 1-3/8	1-3/8	1 - 9	01048
149 11/16	11/16	0 - 8	01026
149 5/8	5/8	0 - 8	01024
149 9/16	9/16	0 - 7	01022
149 1/2	1/2	0 - 7	01020
149 7/16	7/16	0 - 5	01018
149 3/8	3/8	0 - 3	01016
149 5/16	5/16	0 - 2	01014
149 1/4	1/4	0 - 2	01012
149 3/16	3/16	0 - 2	01010
149 1-15/16	1-15/16	2 - 2	01066
149 2-1/2	2-1/2	2 - 10	01084
149 2-7/16	2-7/16	2 - 8	01082
149 2-3/8	2-3/8	2 - 8	01080
149 2-5/16	2-5/16	2 - 7	01078
149 2-1/4	2-1/4	2 - 7	01076
149 2-3/16	2-3/16	1 - 10	01074
149 2-1/8	2-1/8	3 - 13	01072
149 2-1/16	2-1/16	3 - 8	01070
149 2	2	3 - 13	01068
149 1/8	1/8	0 - 2	01008
149 1-7/8	1-7/8	2 - 4	01064
149 1-13/16	1-13/16	2 - 5	01062
149 1-3/4	1-3/4	2 - 6	01060
149 1-11/16	1-11/16	1 - 8	01058
149 1-5/8	1-5/8	1 - 14	01056
149 1-9/16	1-9/16	1 - 14	01054
149 1-1/2	1-1/2	2 - 0	01052
149 1-7/16	1-7/16	1 - 9	01050
