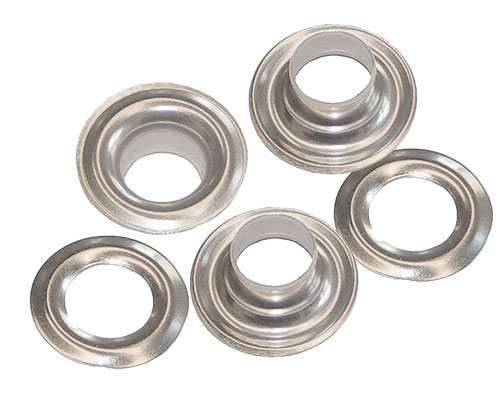

No. N3 - Nickel Plated Self Piercing Grommets

Click on image to zoom
Description:



Made of heavier gauge brass compared to traditional sheet metal grommets.

Nickel plated finish.


Pierce and set in a single action. No need to pre-punch the hole.4 sizes available.

These Grommets are set using our Press Machines Osborne No. W-1 or W-3 using their correspondent dies.

Packed and sold 500 pcs. per box.

No. N2 - Nickel Plated Grommets & Spur Washers
Osborne No.Hole diameter (inches)Outside diameter (inches)Length under flange (in)Weight per box (lbs - oz)UPC No.
N3-01/4.550.1650 - 213164
N3-15/16.630.2000 - 413166
N3-23/8.750.320 0 - 813168
N3-37/16.970.1850 - 1213170
